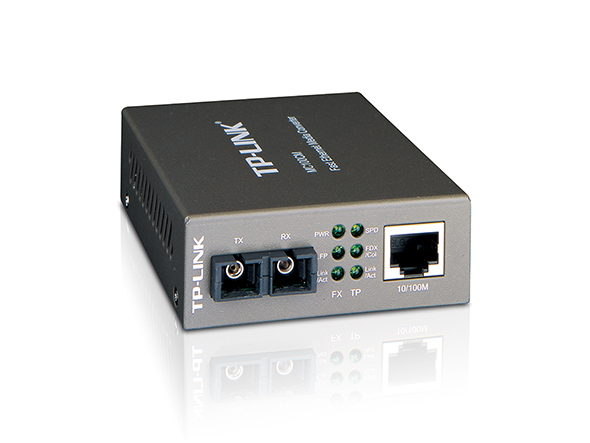

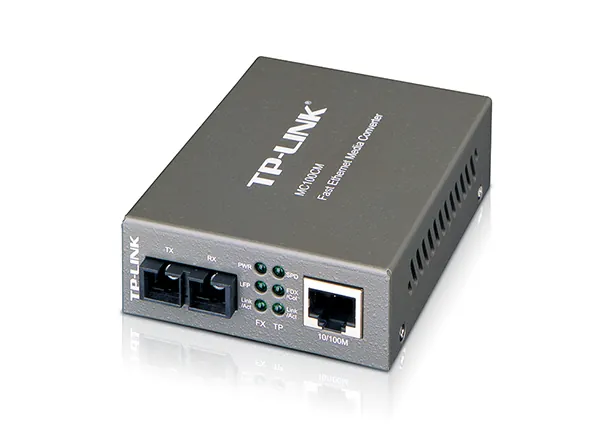

Media Converter Multi Mode 100FX TP-LINK MC100CM
Descripción
Convertidor Rápido de Medios Ethernet
- Compatible con los estándares 802.3u 10/100 Base-TX, 100Base-FX.
- El paso de enlace de fallas y errores minimizan la pérdida causada por la falla en el enlace oportunamente
- Proporciona configuración del switch de Modo de transferencia Medio Dúplex/Dúplex Completo para el puerto FX.
- Amplía la distancia de fibra de hasta 2 km
| CONVERTIDOR DE MEDIOS Y MÓDULO | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function | Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 2km Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely |
| Ports | 1 100M SC/UPC port 1 100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Multi-mode Fiber |
| LED Indicators | PWR, FDX/Col, Link/Act, SPD |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.5W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC100CM • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
